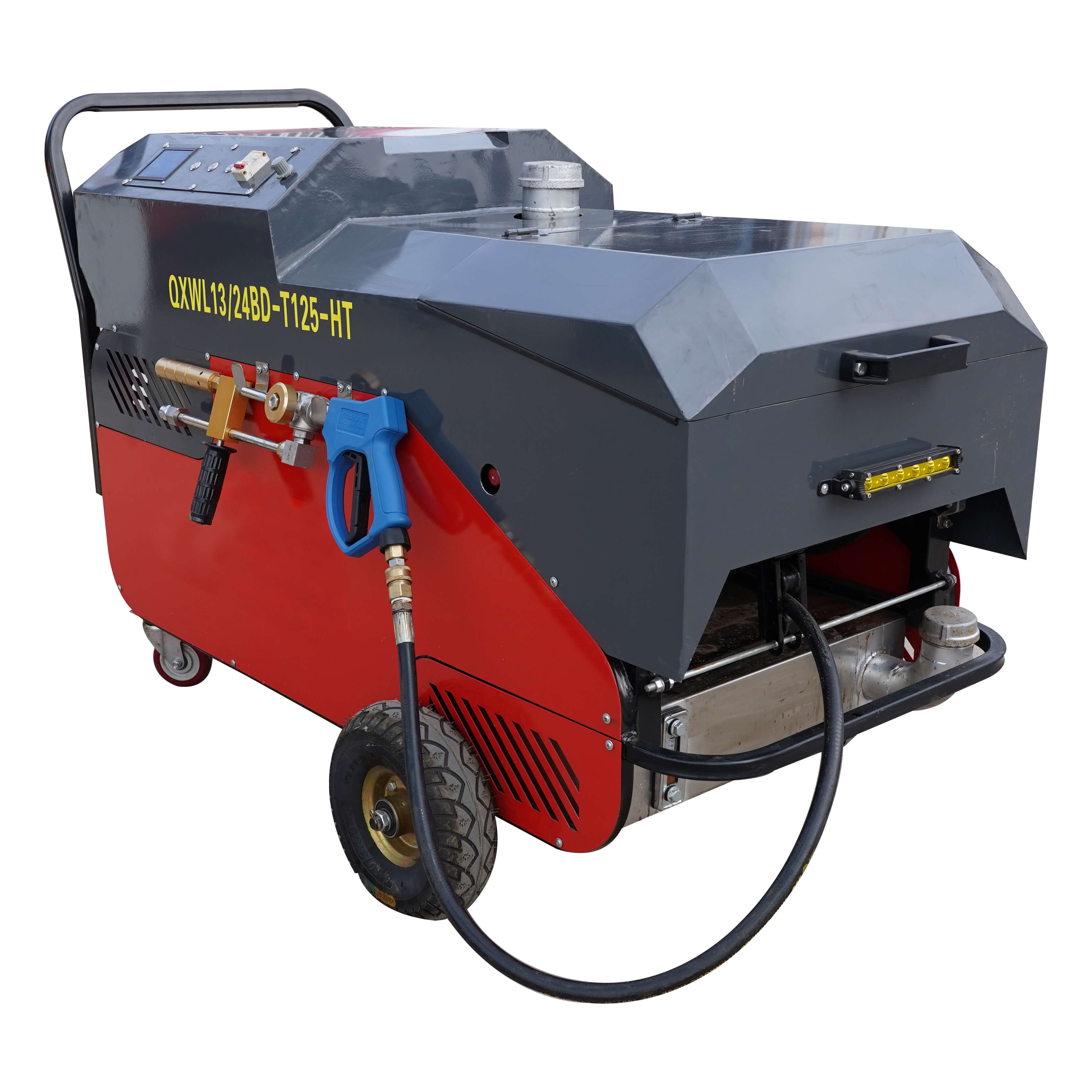

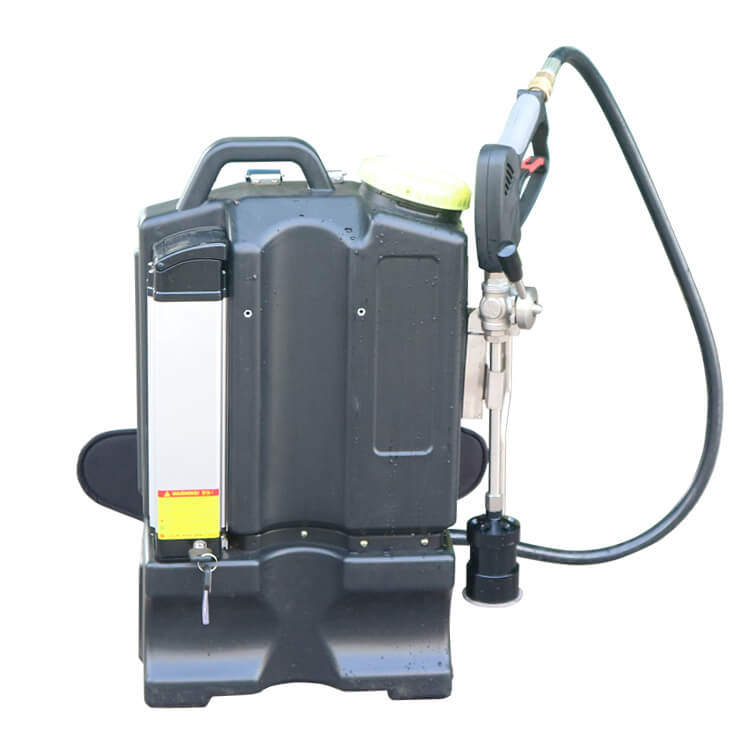

Electric Pressure Washer

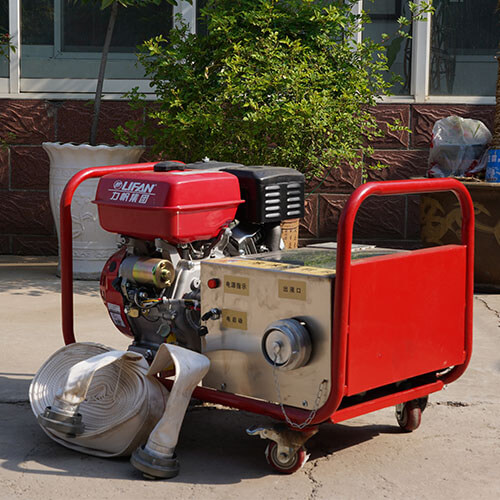

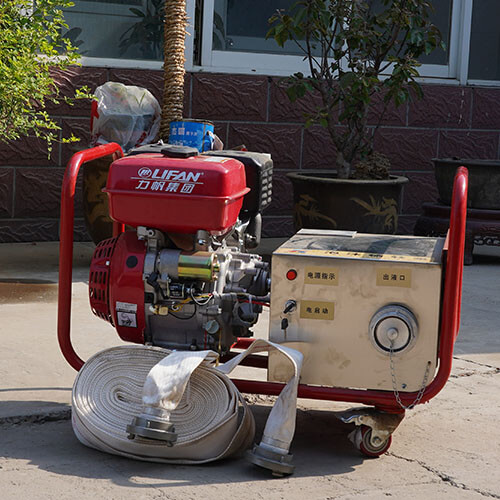

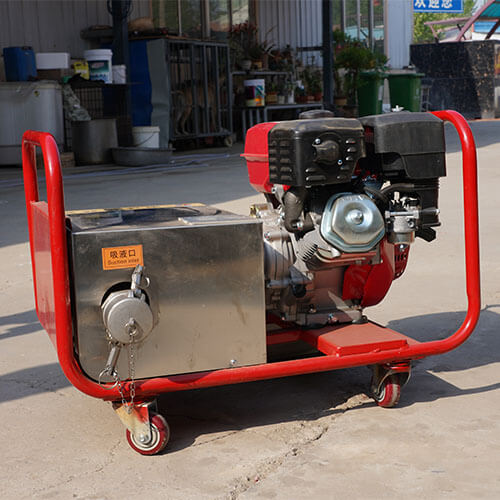

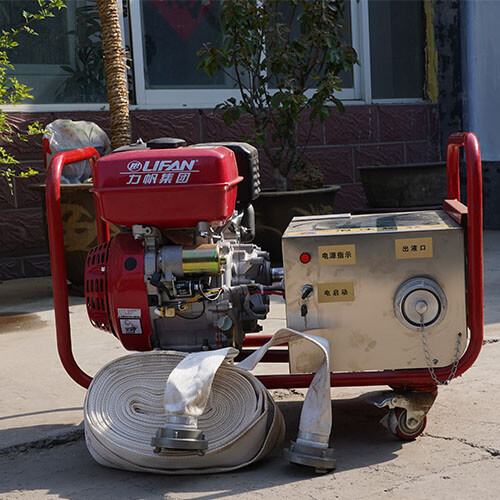

Motorized Foam Transfer Pump
The pump body is equipped with a pair of main and passive wheels, the driving wheel is driven by the engine to rotate, and the two gears are engaged with each other. The internal space of the pump is divided into two working chambers. A is the suction cavity and B is the discharge cavity. The two gears rotate. When the teeth of a wheel are engaged to disengage, a partial vacuum is formed in the suction cavity, and the liquid is sucked in. The sucked liquid fills the tooth valleys of the gears and is brought to the discharge. When the gears continue to enter the occlusion cavity, the liquid is squeezed out, and the high-pressure liquid is formed repeatedly and discharged through the discharge port.
It is mainly used for the addition and transfer of foam liquid during and after the war; in special circumstances, it can also be used for fire rescue and transfer of viscous liquids.
Remarks: Store product parameters, prices, freight, etc. are subject to actual communication. Please contact customer service to verify specific parameters, prices, and freight before purchasing.
Price: Please contact customer service to apply for discount
PRODUCTS LIST
CONTACT US
Please note that we accept the following payment methods: Commercial Letter of Credit / Credit Card / PayPal and PayPal Secured Transaction etc. Thus ensuring your payment is safe and secure. We guarantee that the goods can be delivered safely.
Product Description
Specification
| Model | SZQ-200 |
| Engine Mode | Four-stroke single-cylinder air-cooled |
| Engine Way | Four-stroke double cylinder air-cooled |
| Engine Type | Gasoline Gasoline |
| Rated Power | 5.5KW |
| Starting Model Starting Model | Electric start/ hand pull Electric/hand |
| Self-Priming Depth | ≥ 3 meters (excessive depth requires liquid introduction) |
| Fuel Tank Capacity | 4.5L |
| Rated Capacity | 200L/min |
| Lift | ≥30 meters |
| Inlet Diameter | 50mm |
| Outlet Via Outlet Diameter | 50mm |
| Net Weight | 78KG |
| Dimensions | 800*550*560mm |
Company Profile
Shandong Meijing Garden Machinery Co., Ltd. is a modern enterprise integrating industry and trade with more than 20 years of business history. The company's production plant covers an area of 10,000 square meters, has more than 6,000 square meters of modern workshops, and 3 product production lines, has passed CE, EPA, and iso9000 certification, has advanced production technology and equipment, and has a complete quality inspection and control system.
The company has a complete production system such as equipment assembly and painting. Mainly produces remote control lawn mowers, garden trimmers, lawn punchers, leaf suction machines, pile drivers, and other garden machinery accessories.
The products are sold all over the country and exported to more than 20 countries and regions such as Japan, South Korea, Malaysia, Thailand, the United States, Europe, Australia, etc., and have won wide praise and trust from customers.
FAQ
Q1. Are you a manufacturer or a trader?
A: We are a manufacturer of garden machinery and construction machinery. Actually, we produce most of the parts in our own factory for better cost and quality control.
Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% when machine ready.
Q3. How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.
Q4. Are you interested in a dealership with a local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partners to sell more machines in the local market and supply better service.
Q5. What is your warranty policy?
A: We can supply one year warranty or 2000h for our machines. We will provide parts for free within warranty.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business a long-term and good relationship?
A: 1. We trust a "win-win" situation, we never said our product is the best, and maybe our price is not the cheapest, but we trust we are your right choice. Because we pay attention to ensuring our customer's benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
